24V Truck Cab Air A/C Conditioner, Universal Electric Air Conditioners Mini Split AC System For Cab Within 6㎡/64ft², 3400-10238BTU/1000W-3000W Energy Saving, 1000-3000rpm adjustable Speed

Description

Brand: MuChaIOAK

Color: Black, White

Features:

• 【24V AC Air Conditioner Parameters】24 volt AC air conditioner Power: 950W, Voltage: 24V, Refrigerating Capacity: 1000W-3000W (3400-10238BTU), pass Durability Tested, 100% Leak Tested,OE/OEM Part Number,Refrigerant：R134A 600g (Not include),Oil：90ml-120ml POE68, Range of speed：1000-3000.
• 【Good Cooling Effect】The Truck Cab Air A/C Conditioner is a kind of in-car air conditioner. It uses the on-board battery DC power supply (24V) to make the air conditioner run continuously to adjust and control the temperature, humidity, flow rate, and other parameters of the ambient air in the car, to fully meet the comfortable cooling needs of the truck driver.
• 【Saving Energy】The Truck Cab Air A/C Conditioner with a truck battery without an engine. Meanwhile, it adopts digital frequency conversion and allows you to use the energy-saving mode when you sleep at night, saving you lots of energy.
• 【Long Endurance】Truck Cab Air A/C Conditioner can work continuously for about 6 to 8 hours on a full charge, which can meet your daily needs.
• 【Universal Fitment】This 24V rv ac air conditioner unit is suitable for trucks, construction vehicles, forklifts, cranes, RVs, camping vehicles, excavators or more battery vehicles.

model number: 24V

Part Number: 564153214546

Details: Specifications
Applicable Models: Car (Cab Within 6㎡/64ft²)
Color: Black, White
Voltage: 24V
Rated Power: 950W
Condition: New
Material: Copper, Aluminium, ABS
Installation Position: Inside the Cab; Outside the Cab
Refrigerating Capacity: 1000W-3000W (3400-10238BTU)
Refrigerant: R134A (400-450g/0.88-0.99lbs) (Not Included in the Package)
Oil: 90ml-120ml/0.02-0.03gal POE68
Speed Range: 1000-3000rpm
Way of Use: Direct Replacement
Number of Pieces: 2

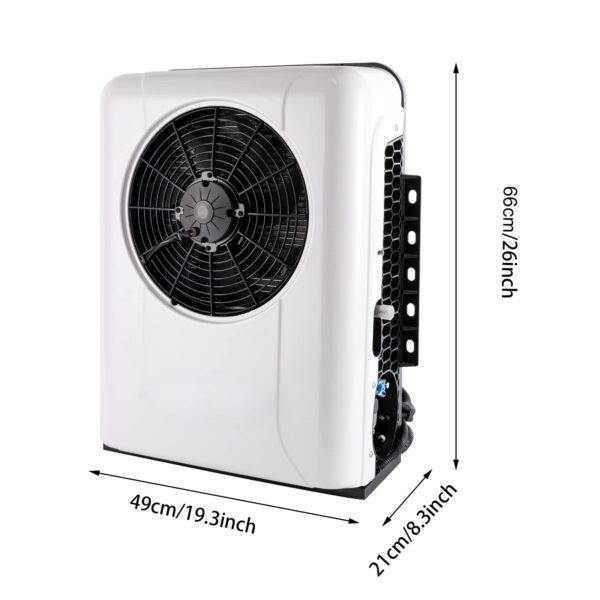

Outdoor Unit Size: 49*21*66cm/19.3*8.3*26inch

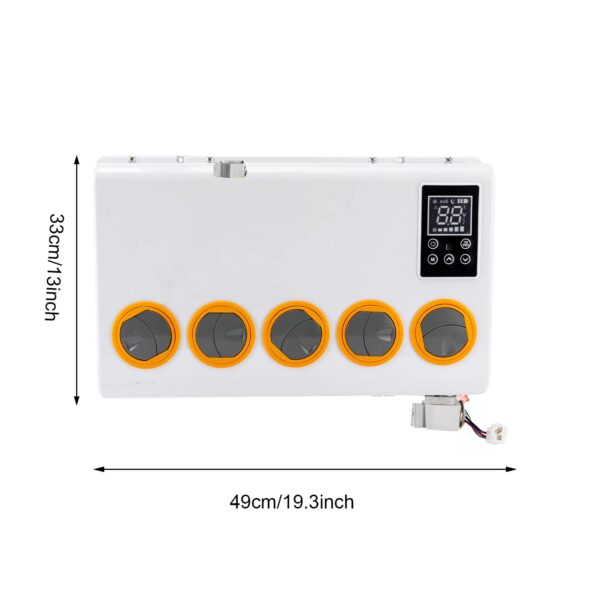

Indoor Unit Size：49*33cm/19.3*13inch

Installation
Remove the outer casing.
Select the installation position and mark the punch position. (Select 5 installation points)
Punch holes at the mark points. (Tool: an 8mm/0.3inch drill)
Use a pull riveter to fix the pull rivet nut at the marked hole.
Fixed the damping pad and sleeve at the marked points on the external machine.
Fixed the external machine.
Install the internal machine: install an expansion valve.
Fixed internal machine mounting plate.
Fixed the internal machine.
3/8inch pipe (high-pressure pipe) connected to the condenser.
Connect internal and external machine wires and power cord.
Connect internal and external pipes, and fixed the evaporation box.
Connect internal and external wires.
Install the drainage pipe.
Vacuum for 15-20 minutes.
Refill refrigerant (Pure R134a) 400-450g/0.88-0.99lbs.
The power cord is connected to the battery.
Install the outer casing.
Winding tape to fix the internal and external machine connecting pipe and the internal and external machine connecting wire.
The installation is complete.

Fits (As a Reference)
For car (Cab Within 6㎡/64ft²).

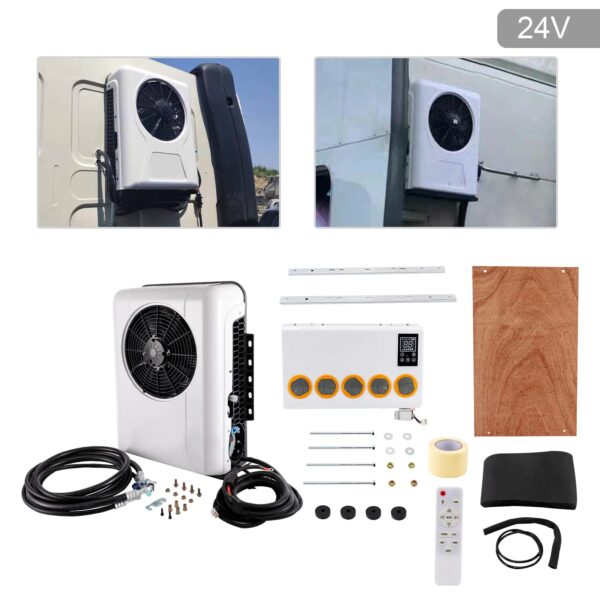

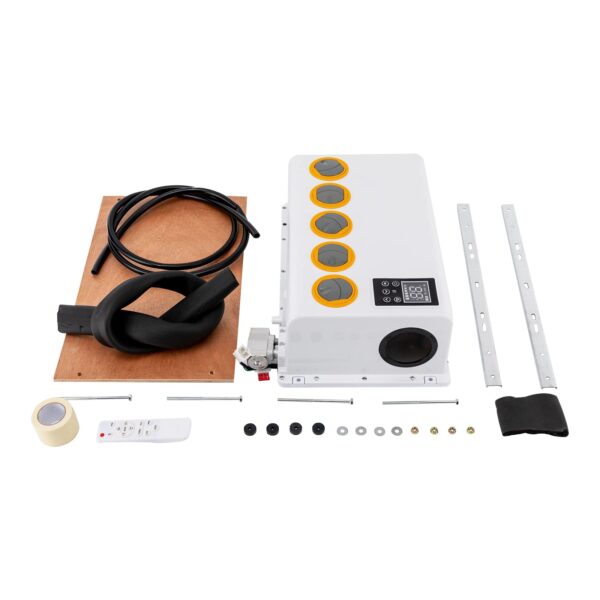

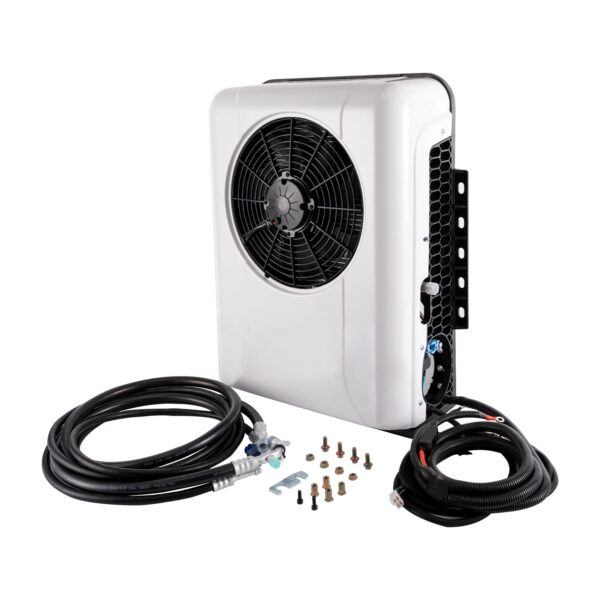

Package Included
1* Air Conditioner Kit
1* Remote Control
Other Accessories for Assembly

Notes
We strongly recommended professional installation. Please contact us if you have any questions.
Please allow the slight difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
