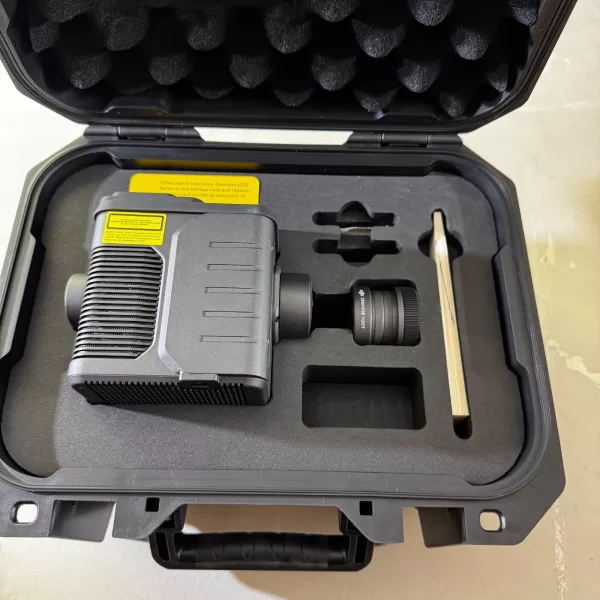

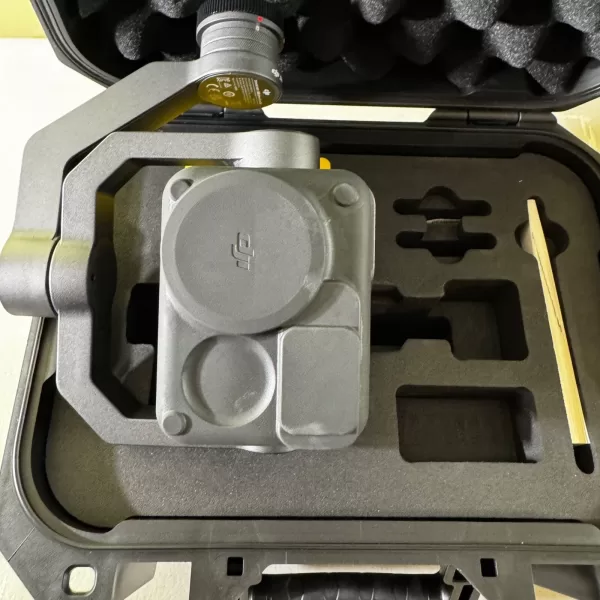

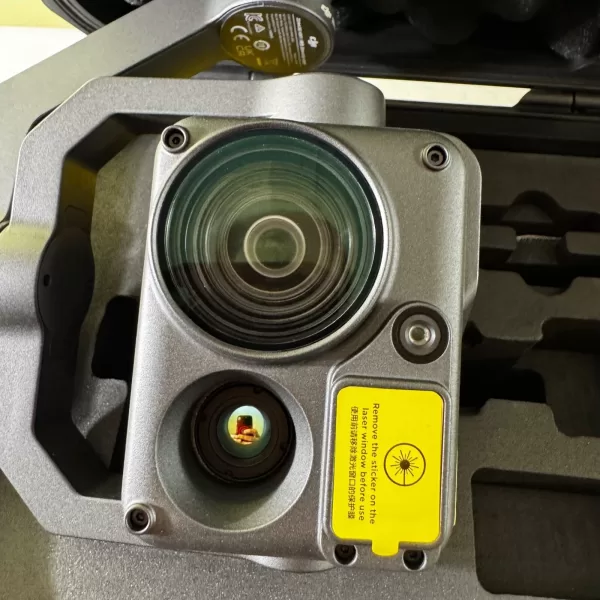

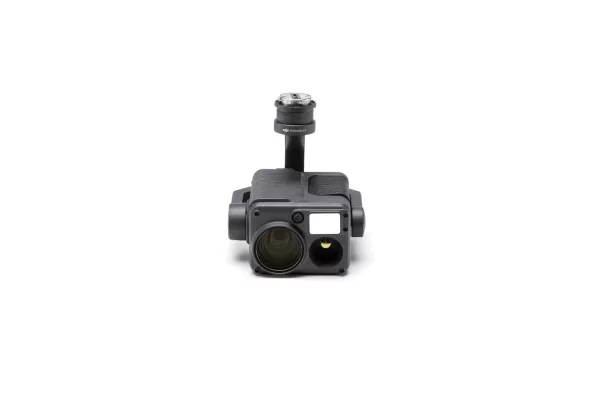

DJI Zenmuse H20T

Description

• 20MP Zoom Camera: Equipped with a 1/1.7″ CMOS sensor, this camera offers 23x hybrid optical zoom and up to 200x max zoom for detailed close-ups.
• 12MP Wide Camera: Features a 1/2.3″ CMOS sensor with an 82.9° field-of-view for capturing the overall picture and maintaining situational awareness.

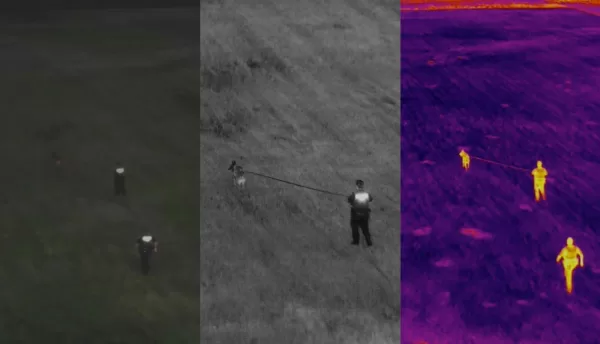

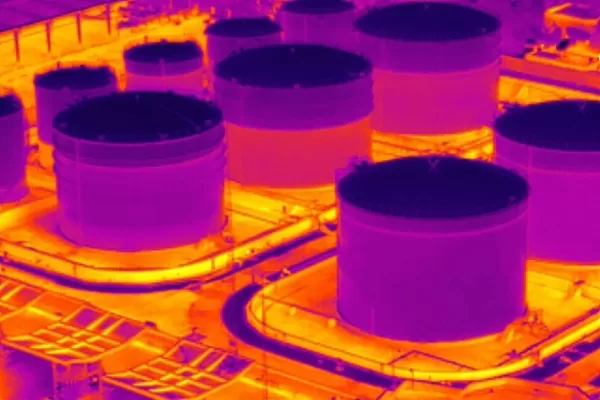

• Radiometric Thermal Camera: Provides thermal imaging with a 640×512 resolution and 30 Hz frame rate. It offers features like temperature alarms, isotherms, and multiple color palettes.
• 1200m Laser Rangefinder: Measures distance to an object up to 1200 meters away, with an accuracy of ±(0.2 m + D×0.15%), where D is the distance.
• IP44 rating: This protects the payload from dust and splashes, allowing it to operate in adverse weather conditions.
• Operating temperature: Can operate in temperatures from -20°C to 50°C, though temperature measurement is available from -10°C to 50°C.
• Night Scene mode: Optimizes the zoom camera for low-light environments by activating its infrared filter.

• AI Spot-Check: Automates routine inspections by recognizing a pre-marked subject in subsequent missions to ensure consistent framing.
• High-Res Grid Photo: Allows an operator to define an area in the wide-angle view, and the zoom camera will automatically capture a series of 20 MP photos of that area.
• PinPoint: Advanced sensor fusion algorithms deliver the precise coordinates of an object in view with a single tap.
• Smart Track: Allows the user to identify and follow moving subjects, with the camera automatically zooming and acquiring the subject’s dynamic location.
• One-Click Capture: Captures footage from the thermal, wide, and zoom cameras simultaneously with a single tap.

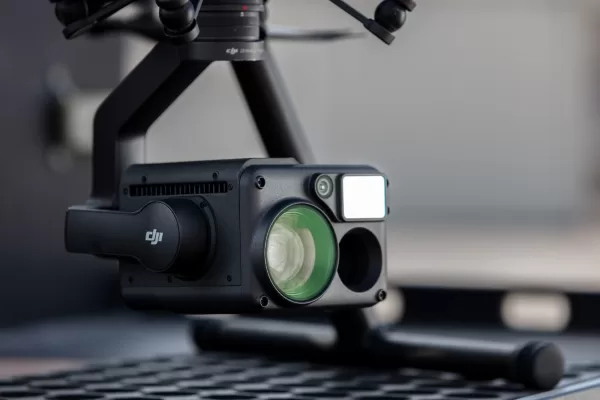

• Supported aircraft: The Zenmuse H20T is designed for use with the DJI Matrice 300 RTK and the DJI Matrice 350 RTK.
• Control software: The payload is controlled using the Android version of the DJI Pilot App.
• Thermal analysis: Captured thermal images are saved in the R-JPEG format with embedded temperature information. This data can be analyzed using the DJI Thermal Analysis Tool.

• Public safety: Search and rescue, firefighting, and law enforcement.
• Inspections: Powerline, gas pipeline, and other critical infrastructure inspections.
• Agriculture: Monitoring crop health and irrigation.
• Surveying and mapping: Precise distance measurements for modeling terrain and structures.
