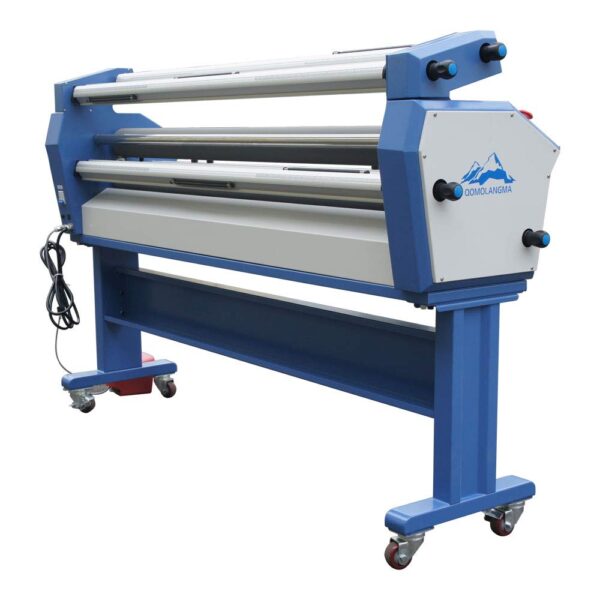

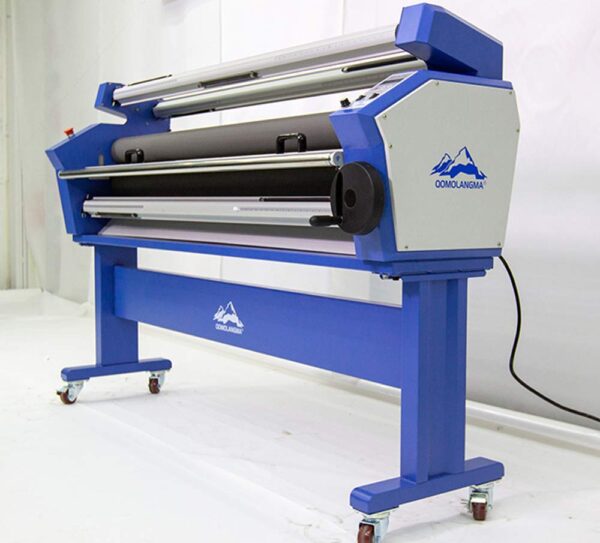

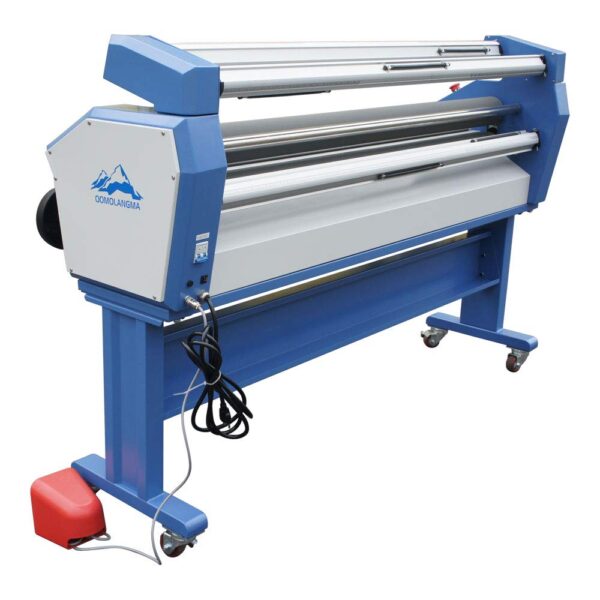

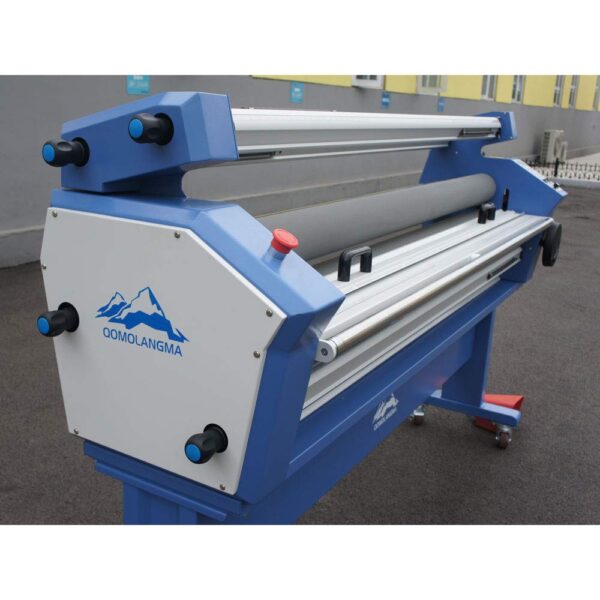

QOMOLANGMA Wide Format Laminator 55in /63in Full-auto Wide Format Cold Laminator Machine Roll to Roll Large Format Laminating Machine with Trimmer (63 Inch, with Trimmer)

Description

Brand: QOMOLANGMA

Features:

• ✔ Warranty: 3 years warranty!!! Great for mounting prints to boards Over laminating digital prints Applying application tapes, applying double side adhesives and vinyl.
• ✔ Specification: Max. Working Width：1400mm (55in) / 1600mm (63in); Variable Working Speed:0 – 6m / min (19.685ft / min); Max. Nip Opening:35mm (1.38in); Roller Diameter:102mm (4in); Top Roller Material:Silicon rubber; Bottom Roller Material:Natural rubber; Drive Motor:90W; Power Consumption:1400W
• ✔ Used for: A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for their projects. This new model can be widely used for pre – masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
• ✔ Application: Sign & display, window graphics, banner, poster, POP, vehicle wrapping, wallpaper, cutting sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document finishing, floor graphics, rigid and flexible indoor displays, board and many more.
• ✔ Remark: Trimmer cutting function for your option, if you want this function, please choose “with trimmer”, The machine will be equipped with four knives.

model number: 63 Inch, With Trimmer

Part Number: CALCA-laminator

Details: 55in / 63in Full-auto Wide Format Cold Laminator, with Heat Assisted

Specification:
Max. Working Width：1400mm (55in) / 1600mm (63in)
Variable Working Speed:0 – 6m / min (19.685ft / min)
Max. Nip Opening:35mm (1.38in)
Roller Diameter:102mm (4in)
Top Roller Material:Silicon rubber
Bottom Roller Material:Natural rubber
Drive Motor:90W
Power Consumption:1400W
Power Requirement: AC110V / 50-60Hz, 8A(55in) / AC110V / 50-60Hz, 16A (63in)
Forward / Reverse:Yes
Foot Pedal:Yes
Auto Rewind Liner Pickup:Yes
After Laminating Pickup:Yes
Emergency Stops:Yes

Features:
Good color reducibility and light transmittance, free of bubbles and snowflake point!
Free heavy duty floor stand with caster wheels
Laminates graphics up to 55in wide

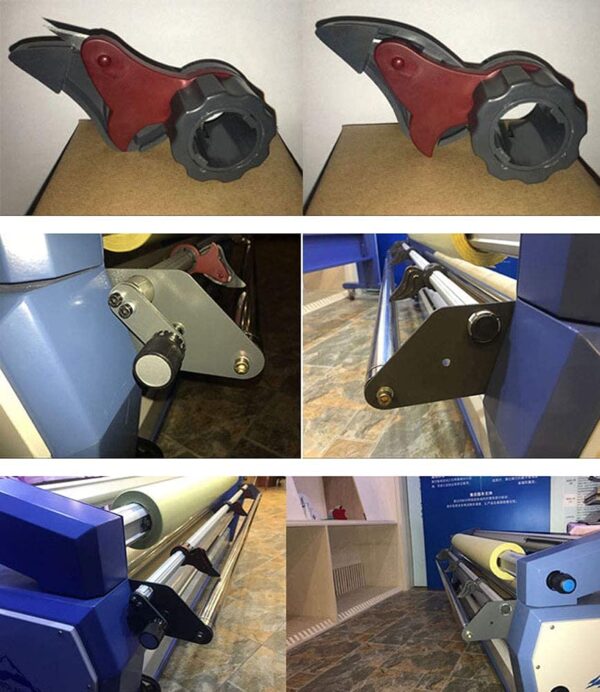

Drop in type interchangeable 3 inches aluminum shaft
Manual nip adjustment up to 1.38 inch for handling of most substrates
102mm (4in) bigger rollers for best quality laminating control
Safety eyes for increased operator safety
Foot switch for hands free operation
Removable front worktable for easy film setup
Adopt new – style aluminum alloy supporting roller.
One side hand crank lift up system

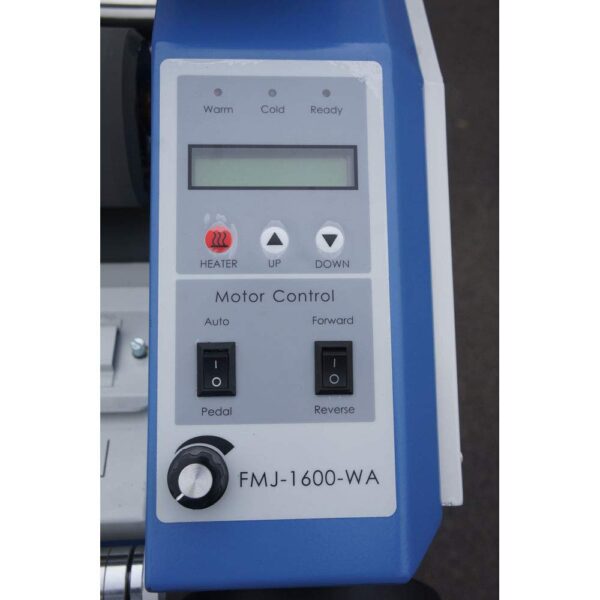

Button type control panel
Variable speed control
Forward and reverse direction control
E-stop and photocell installed for safety
Both auto and foot pedal switch mode
Removable pressure plate
Stand assembled at customer site

Used for:
A perfect fit for entry level customer, who is looking for an affordable and professional cold laminator for projects. This new model can be widely used for pre – masking vinyl graphic, mount prints on substrate, over laminating inkjet prints and so on.
Great for mounting prints to boards
Over laminating digital prints
Applying application tapes, applying double side adhesives and vinyl

EAN: 8414830953894
